EasyBuddy
The lab operator everyone would like to have.

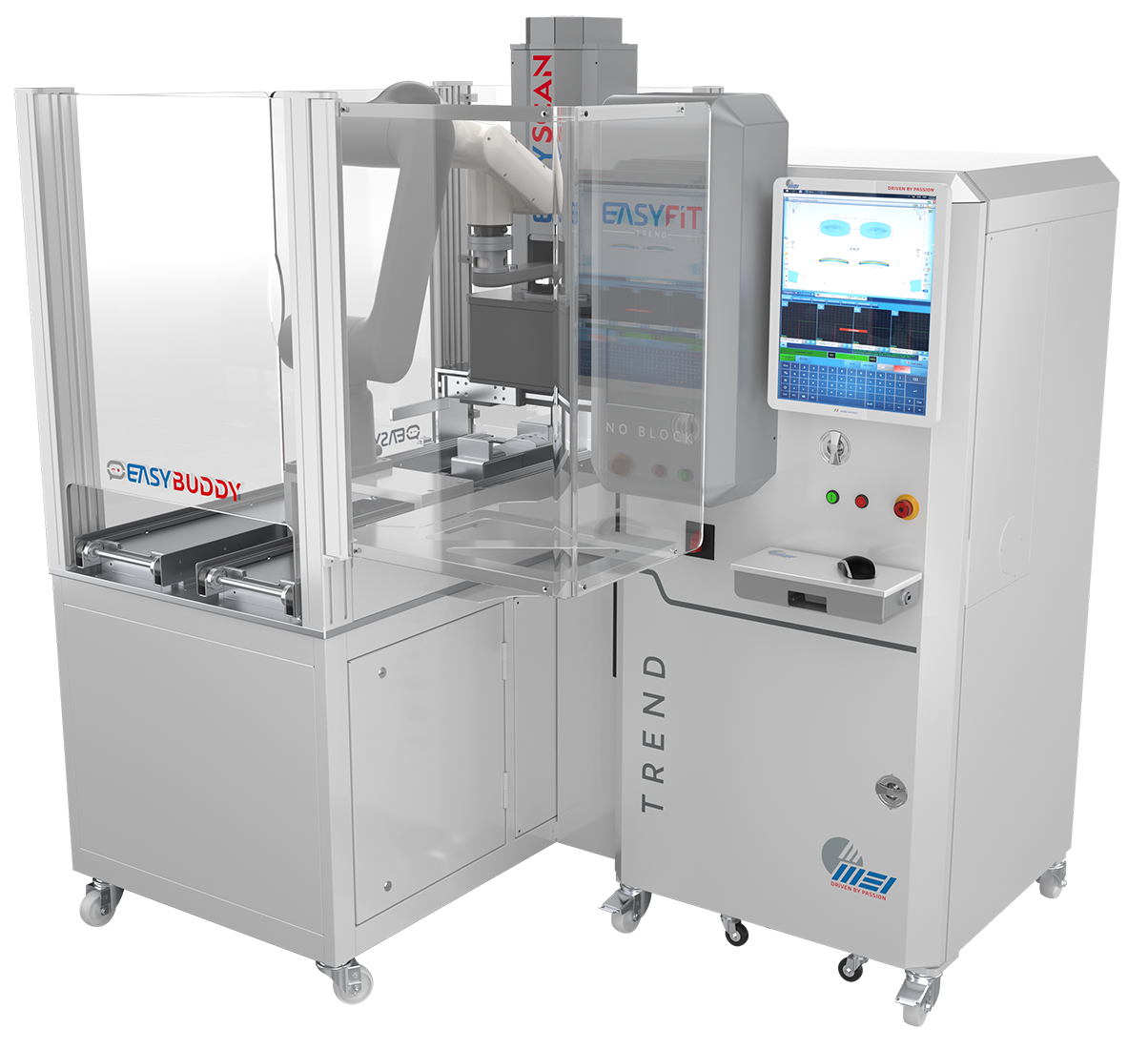

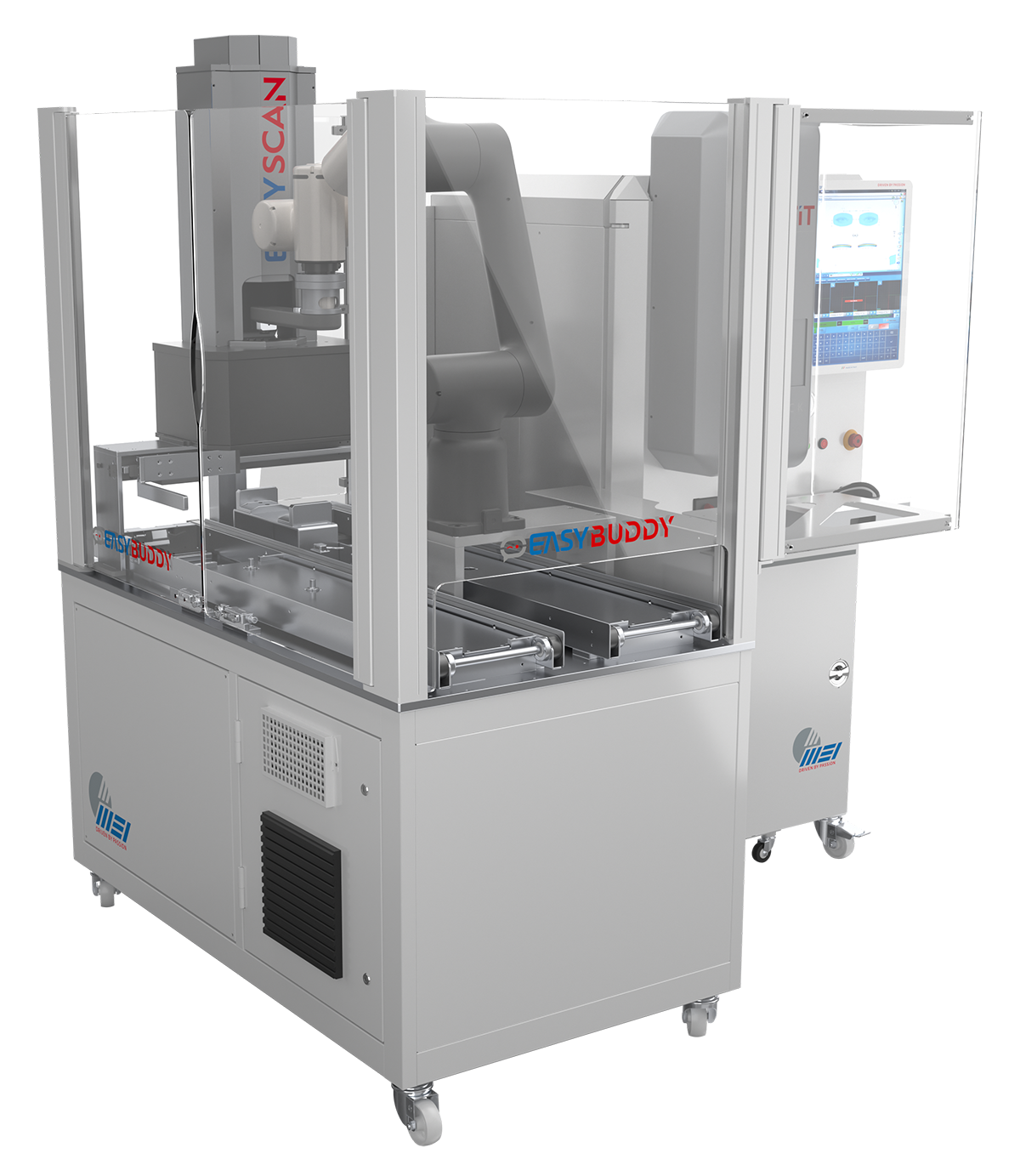

The EasyBuddy is an automated system with an integrated cobot that keeps your EasyFit Trend running with minimal manual input. It delivers consistent, precise performance without fatigue - freeing you up to focus on the tasks that matter most.
Benefits
Your daily job has never been so EASY
High level of automation
Versatility
Modularity
Increased autonomy
Optimised footprint
The EasyBuddy handles up to five trays in and five trays out as standard. For even greater automation, you can add an automatic stacker which can hold 40 trays, boosting your production autonomy.
Trays can be loaded or unloaded without interrupting machine operation, and the EasyFit remains fully accessible for manual use when needed. Jobs can be prepared through your LMS, an offline station, or directly on the machine—whatever works best for your workflow.
EasyScan
EasyScan, the integrated pre-inspection scan device, allows EasyBuddy to analyze the lenses before the edging, polarisation included, to place the lens into the EasyFit Trend in the perfect position without any human intervention.
Processing Cycle
The tray flows on a conveyor to the EasyScan area
EasyFit uploads the job through the barcode reader
The cobot loads the lens in EasyScan for the pre-inspection (lens centering and orientation)
The cobot moves the lens into EasyFit
The cobot moves the edged lens back into its position in the tray
