Tinting - Phantom Tint Units - Phantom Large Tint Unit

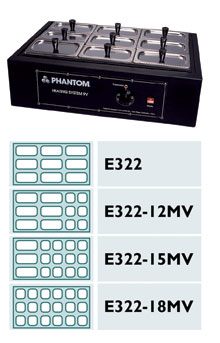

Phantom Large Tint Unit

Phantom Large Tint Unit

E322

9 Pot

Qty 1

POA

E322-12MV

12 Pot

Qty POA

POA

E322-15MV

15 Pot

Qty POA

POA

E322-18MV

18 Pot

Qty POA

POA

Features
  • Fast heat-up time
  • Uniform temperature
  • Overflow channel to catch spilled chemicals
  • Rugged copolymer construction
  • Durable stainless steel heating elements, HTF tanks, vats, and lids
  • Mini Tanks Available (optional)
  • Heavy duty
  • Designed for production operations

Stainless steel quart sized tanks (vats), in black copolymer housing for minimum heat radiation and maximum thermal insulation. Designed to optimally heat optical lens tinting solutions and other similar materials. Half size mini vats are available (optional). The system incorporates a stainless steel heating element, designed specifically for heating Heat Transfer Fluid without burning it which is a common problem in many heating units.

Heating Element: 1 Stainless Steel 1600 Watt
Watt Density of Unit: 29.9 W/sq. in.
Heater Type: Tubular
Heating Medium: H.T.F., 2.5 gallons
Heating Solutions: Non-combustible, non-toxic, and non-reactive with stainless steel
Dimensions: 590mm x 385mm x 230mm
Thermostat Range: 15�C to 120�C
Weight without H. T. F: 13 kg.
Housing: Copolymer material
Insulation: Fibreglass and silicon rubber
