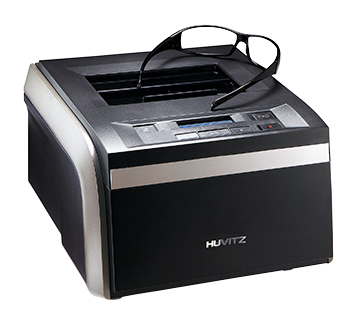

HFR8000 Remote Tracer
The HFR8000 offers precise scanning of all metal and plastic frames.
Binocular and monocular tracing are both available to meet users' accuracy and efficiency needs.
Perfect process of stereoscopic
Accurate tracing of high-curve frames with unique HUVITZ mechatronic technology.
Now special frames are not challenging
Accurate scanning for concave shape, sharp edge, and narrow frame is very easy!slide cover that prevents dust accumulation
Keeping out dust will ensure durability and precision
Specifications
- Tracing Type: Automatic 3D Binocular Tracing
- Tracing Mode: Auto, Semi-Auto
- Tracing Size: Frame 16.0~92.0mm, pattern 16.0~84.0mm
- Frame Material: Metal, Hard Plastic, Soft Plastic
- Data Processing: FPD, Frame Curve, Circumference, 3D Angle Concave Shape
- Dimensions / Weight: 284(W) x 320(D) x 190(H)mm / 8kg
- Power Supply: 100 - 240V, 50 / 60Hz
- Power Consumption: 32W
